Calix

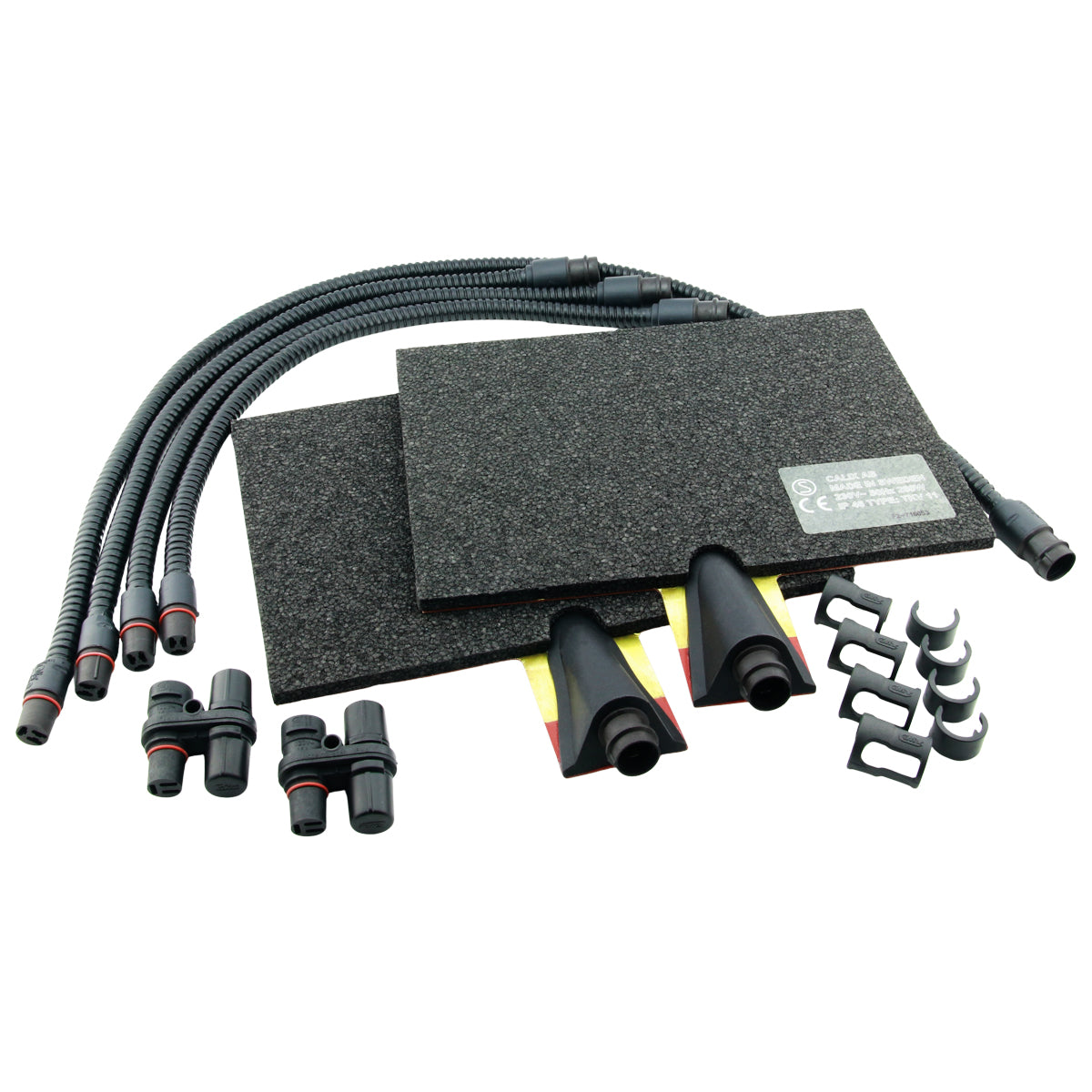

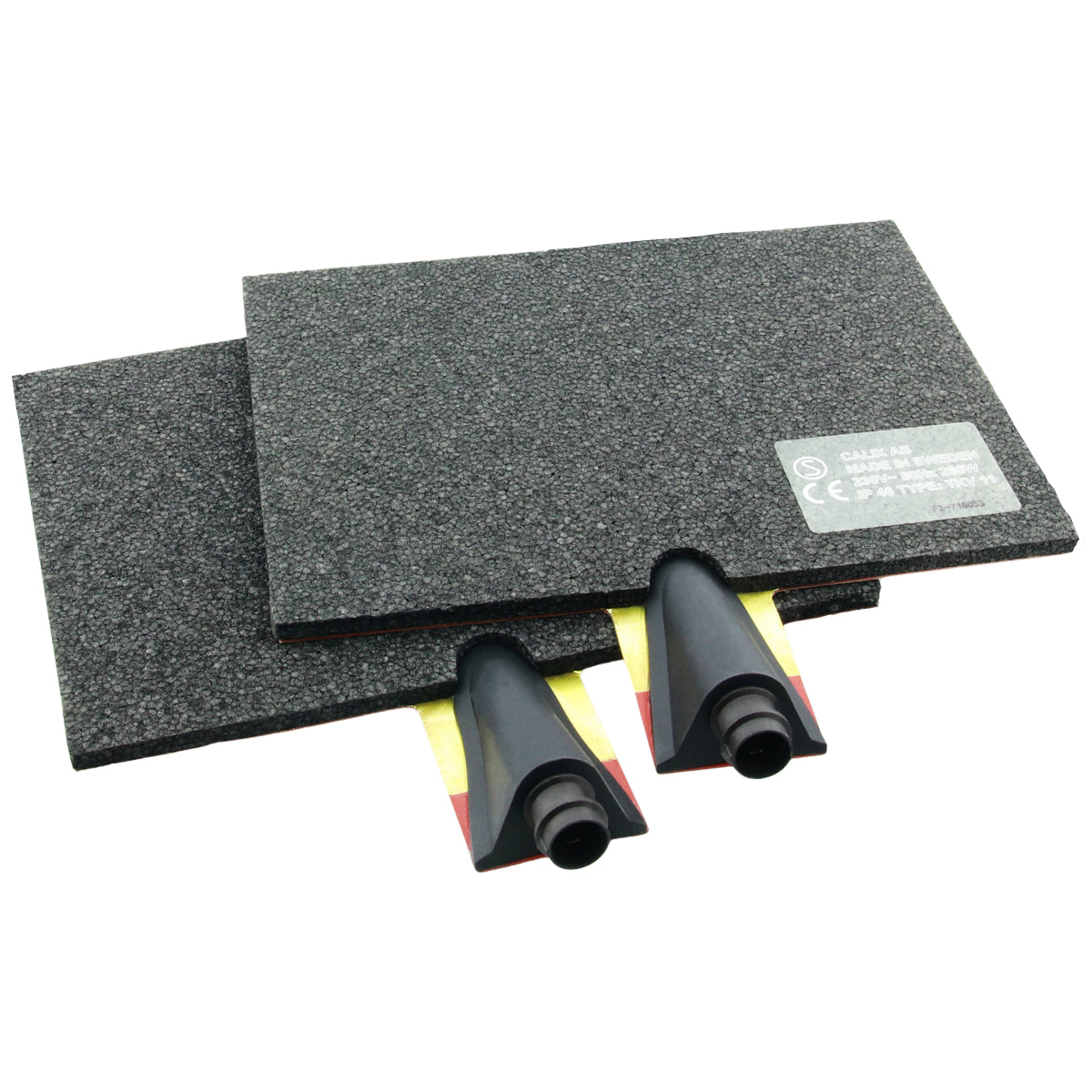

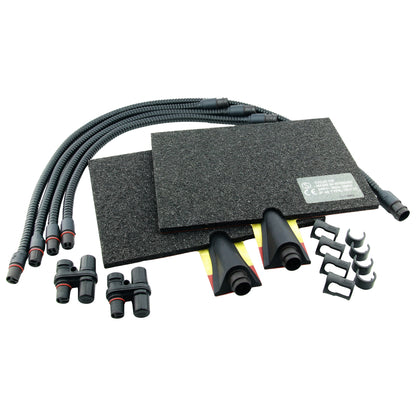

Calix Tank Heater TKV Kit 200, includes 2x 260W Pad Heaters 220x310mm 230v AC, 4 Extension Cables and 2 Multisocket Connectors
Calix Tank Heater TKV Kit 200, includes 2x 260W Pad Heaters 220x310mm 230v AC, 4 Extension Cables and 2 Multisocket Connectors
£790.44 GBP inc VAT
Couldn't load pickup availability
Calix Tank Heater TKV Kit 200, includes 2x 260W Pad Heaters 220x310mm 230v AC, 4 Extension Cables and 2 Multisocket Connectors - 1769102
The Calix Tank Heater is easy to install with the included double-sided adhesive tape and is suitable for most plant machinery with a metal hydraulic tank.
The Calix Tank Heater maintains the hydraulic oils working temperature during short stoppages or overnight shutdowns. The Calix Tank Heater TKV has 12mm insulator for improved performance and is IP46 rated.
Recommended heater coils for different tank sizes:
Under 70 litres 1 heater coil (260 W)
70 – 170 litres 2 heater coils (520 W)
Over 170 litres 3 heater coils (780 W)
Features & Benefits
- Genuine Calix TKV Kit 200 tank heating system
- Complete kit for external tank and reservoir heating
- Includes 2 × 260W heating pads
- 520W combined heating capacity
- Each heater measures 220 × 310mm
- Designed for 230V AC electrical supply
- Includes 4 extension cables
- Includes 2 multisocket connectors
- Provides efficient heat transfer through the tank wall
- Flexible installation with multiple heating pads
- Ideal for automotive, commercial and industrial applications
| Specification | ||
| Operating Voltage | 230 v AC | |
| Power | 260 W (each) | |
| Operating Temperature | -40°C to +125°C | |
| Dimensions (Heating Pad) | 220 x 310 x 11.25mm (each) | |
| Dimensions (inc. plug) | 312 x 310 x 35.67mm (each) | |
| Part Number | 1769102 | |
The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can assembly a complete system from the numerous options available to match their specific requirements.
| Quantity | Description |
| 2x | Calix Tank Heater TKV 260W |
| 2x | Multiple Socket Triple GU405 115/230v |
| 3x | SK Extension Cable 0.5m |
| 1x | SK Extension Cable 1.0m |
| 4x | Safety Lock (OUT) |
| 4x | Safety Lock (OUT) |
| 1x | Instruction / Safety Manual |
Calix TKV Kit 200 – 1769102 is a complete 230V AC tank heating system featuring two 260W heating pads, providing a combined 520W heating output. Each 220 × 310mm pad mounts externally to the tank or reservoir, while the included four extension cables and two multisocket connectors provide flexible installation options.
- Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
