1762421 - Multiple Socket Triple GU405 115/230v

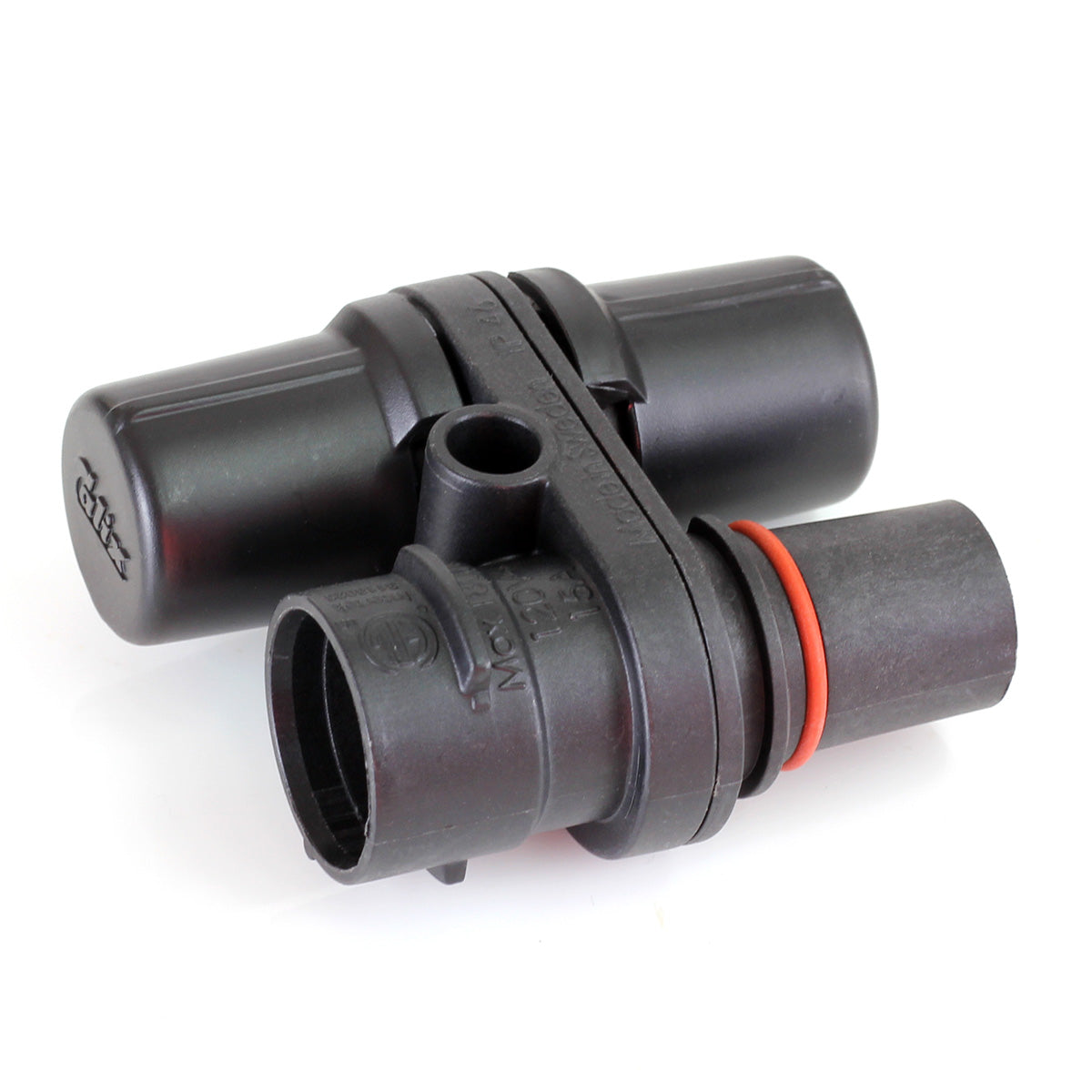

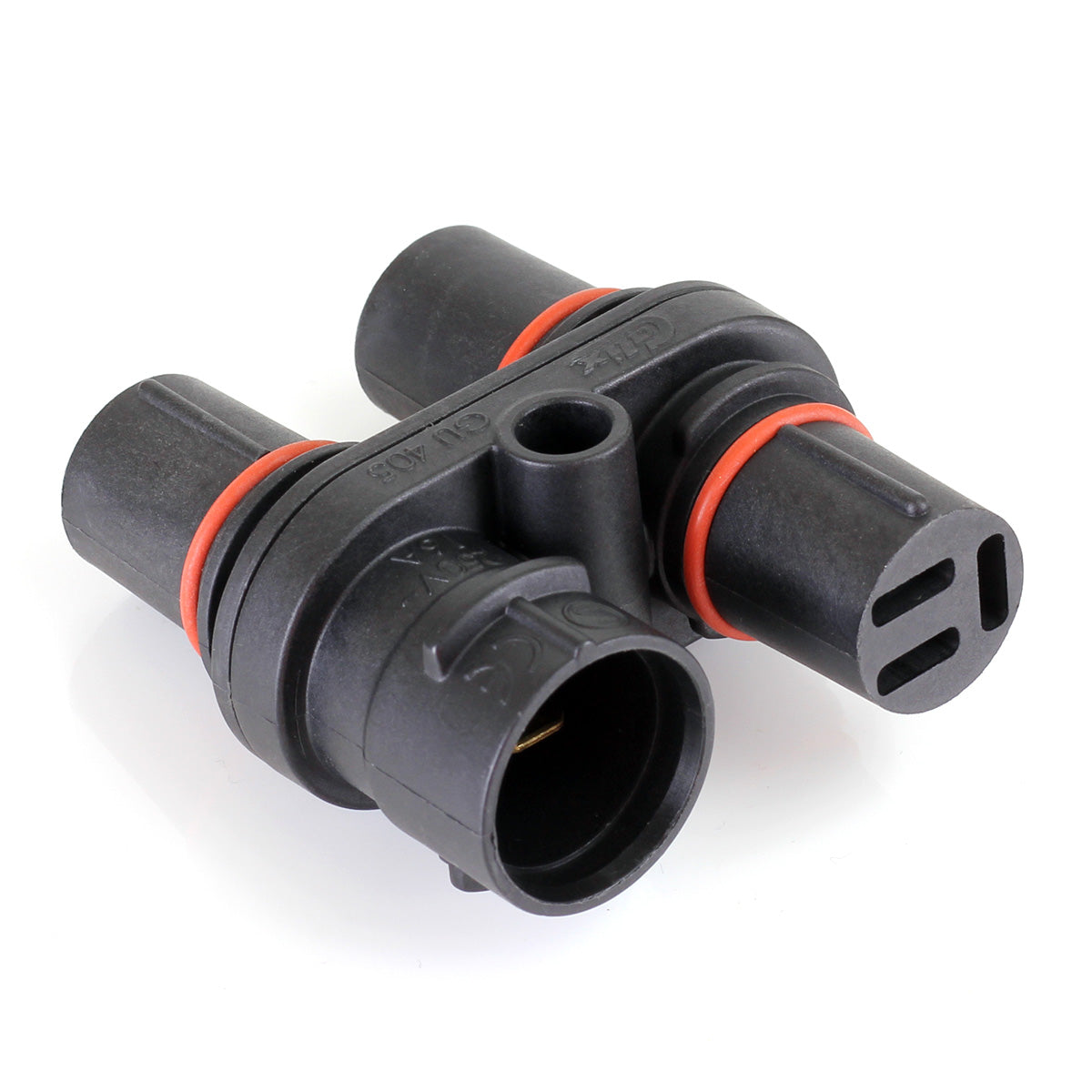

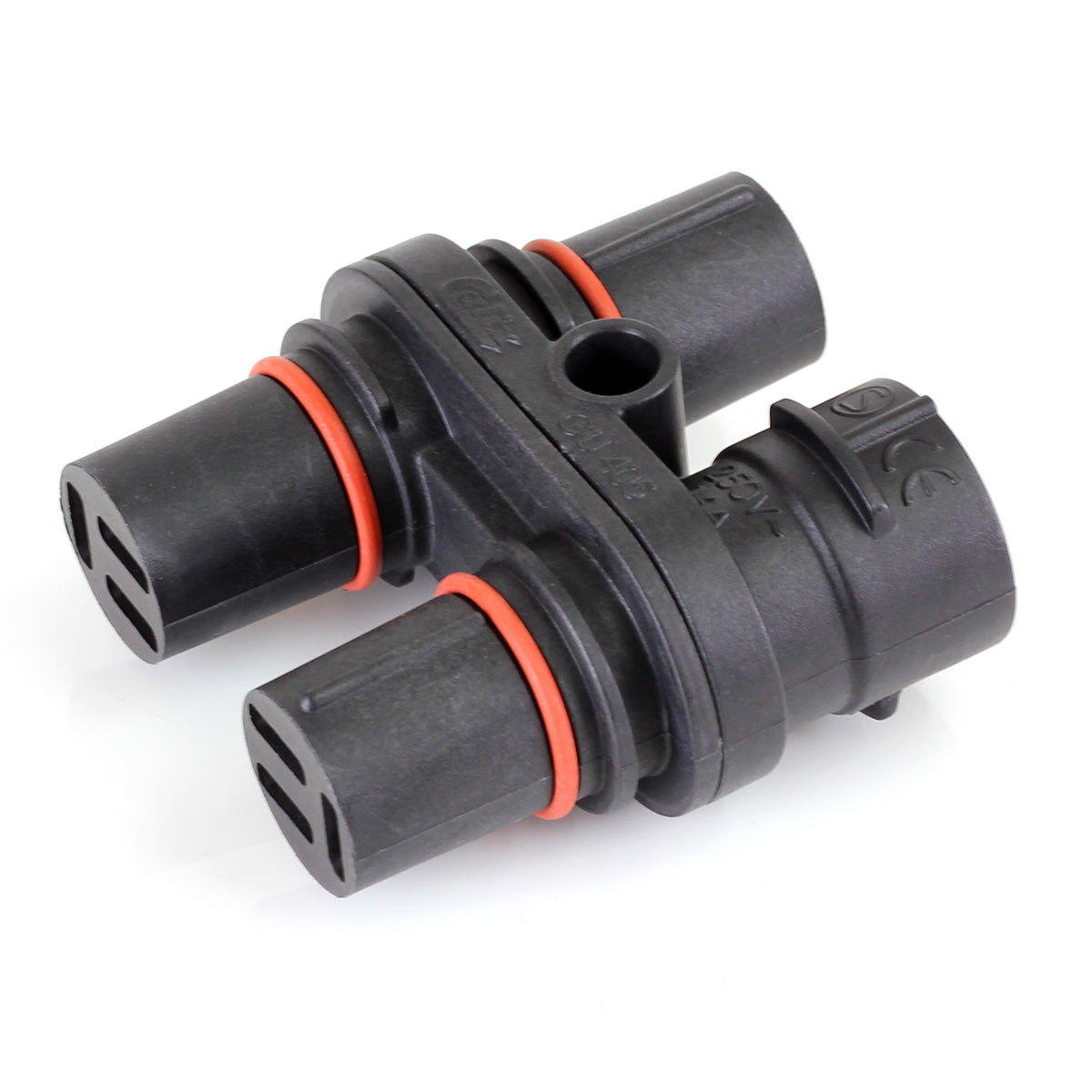

The Calix Multiple Socket Triple GU405 (1762421) is essentially a break-out port that will allow the user to introduce 2 extra 115/230v accessories into their Calix system such as a battery charger and interior heater etc. This unit will require a SK Extension Cable per accessory to connect an additional component.
The triple socket can be mounted using an M6 bolt through the centre of the housing.
| Specification | Metric | |
| Nominal Voltage | 115 / 230v AC | |
| Max Voltage | 250v AC | |
| Maximum Current Draw | 15a @ 115v, 16a @ 230v | |
| Ingress Protection | IP46 | |
| Warranty | 3 Years from Date of Purchase | |
| Manufacturer | Manufactured in Sweden by Calix | |
| Part Number | 1762425 | |
What's In The Box?
The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can build a bespoke system to meet their specific requirements.
| Quantity | Description | Replacement Part Number |
| 1x | Multiple Socket Triple GU405 | 1762425 |
| 2x | Protective Plastic Cap | 1559723 |
ATTENTION
- Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
