Calix

Calix Engine Heater PH750H 750w 230v (60-80c) 1833070

Calix Engine Heater PH750H 750w 230v (60-80c) 1833070

Regular price £230.54 GBP ex VAT
Regular price
Sale price £230.54 GBP ex VAT
£276.65 GBP inc VAT
£276.65 GBP inc VAT
Sale Sold out
P/N: 1833070

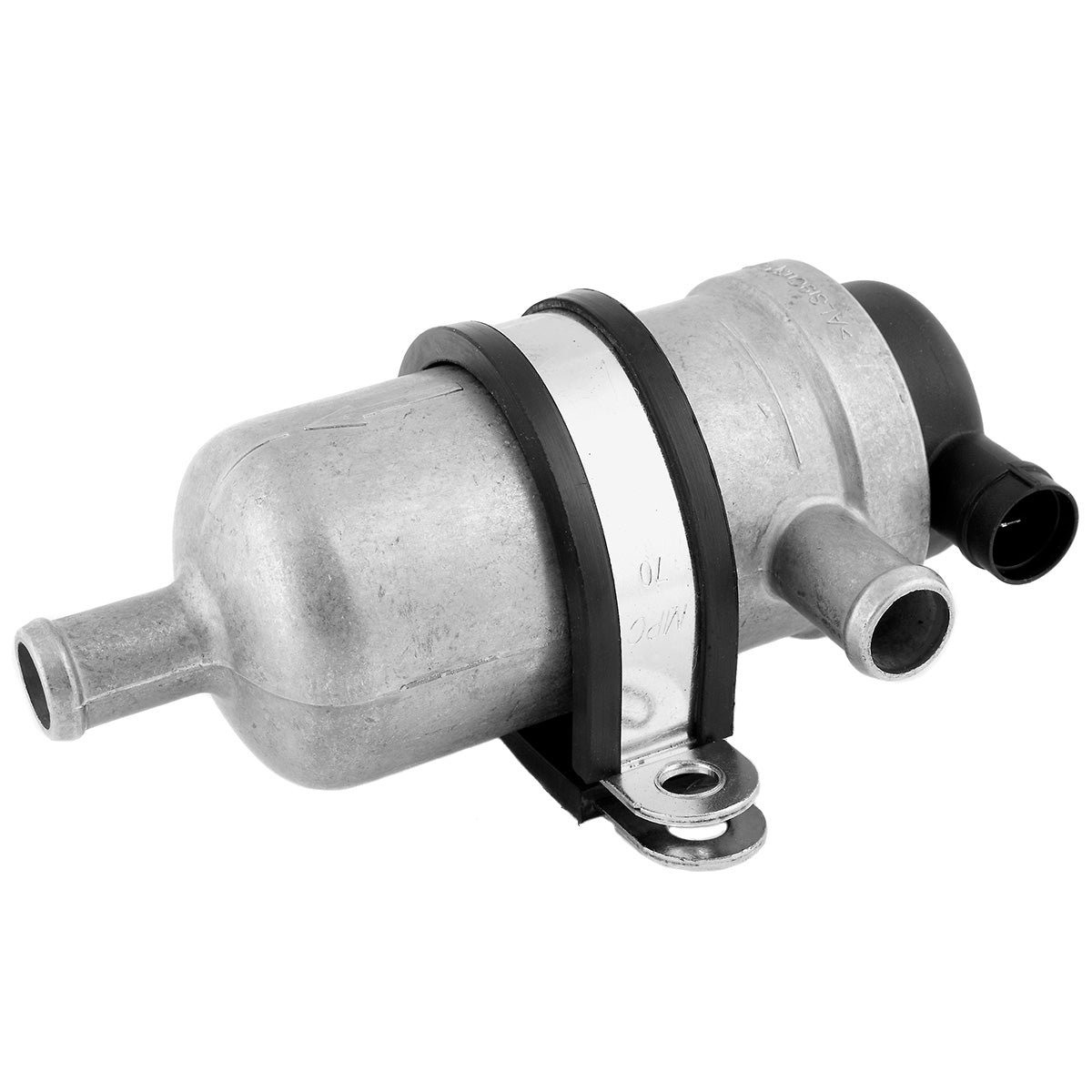

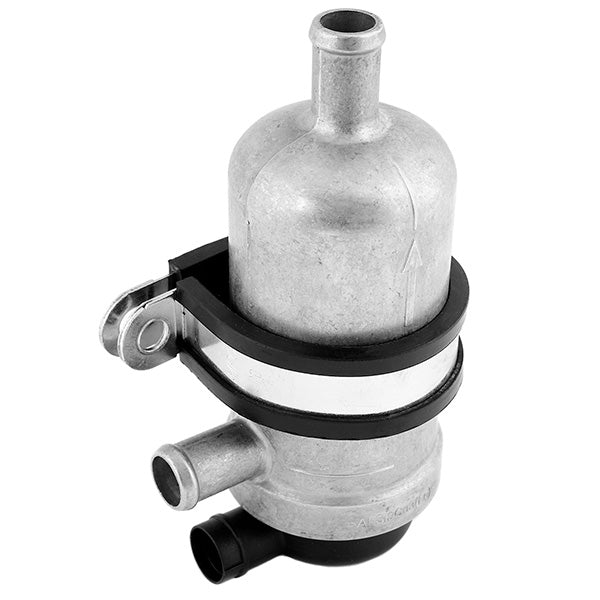

1833070 - Calix Engine Heater PH750H 230v (60 - 80 °C)

Calix range of PH heaters are manufactured for longevity, quality and ease of installation. They can be installed passively using the thermosiphon principle, or if an optimum position isn't available then an additional transformer & pump kit can be purchased to circulate coolant through the system. An industry leading 3-year warranty is offered on all Calix products.

The PH is available in two versions; high temperature for frequently used vehicles & machinery and low temperature for rescue vehicles and standby generators for emergency use.

Specification Metric Imperial & Other
Heating Power 750 W 2,559 BTU
Thermostat Temp Spread On @ 60°c, Off @ 80°c On @ 140°F, Off @ 176°F
Secondary Failsafe Thermostat 80°c 176°F
Hose Size 20 mm ~3/4"
Unit Weight 0.9 kg 1.98 lbs
Operating Voltage 230 v AC
Current Draw 3.3 a
Overheat Protection Manual Reset Overheat Thermostat
Conformity CE, Low Voltage Directive 2006/95EC, EMC Directive 2004/108/EC
Warranty 3 Years from Date of Purchase
Manufacturer Manufactured in Sweden by Calix
Part Number 1833070
What's In The Box?

The full calix range of engine & block heaters are designed as a modular system where the end user can build a complete system from the various components based on their specific requirements, therefore this heater is supplied as a bare bones unit with just the following components. Extension cables, wall socket cables, timers, battery chargers, pumps etc are available to buy separately.

Quantity Description Replacement Part Number
1x PH750H Engine Heater -
1x Cable Safety Lock 1556341
1x Rubber Lined Clamp Please see 'Clamp Pro'
Dimensions
Calix Engine Pre Heater PH750H 1833070
attention
ATTENTION
  • Please thoroughly read the provided instructions prior to use. Damage caused by incorrect installation, use or maintenance is not covered.
  • Calix Engine Heaters are not compatible with any radiator sealant, radweld, cooling system stop leak, leak repair etc. Using the heater in conjunction with these chemicals will invalidate the warranty.
