Calix Engine Heater PH2000XL 2000w 230v (15-25c) - 1833240
Calix Engine Heater PH2000XL 2000w 230v (15-25c) - 1833240
£291.72 GBP inc VAT
Couldn't load pickup availability

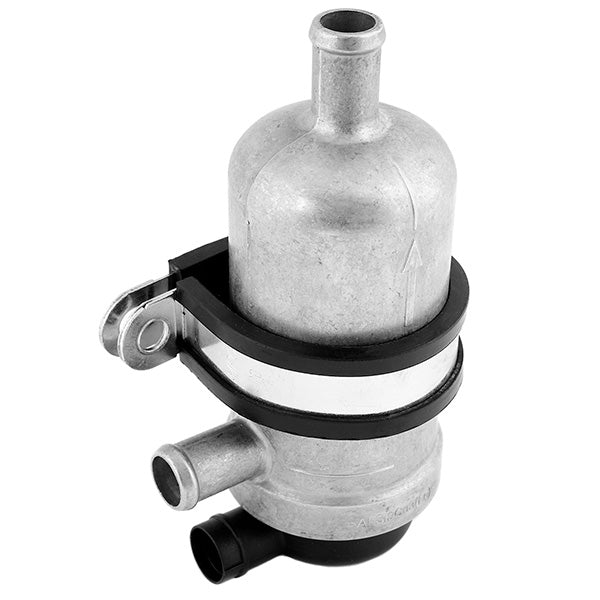

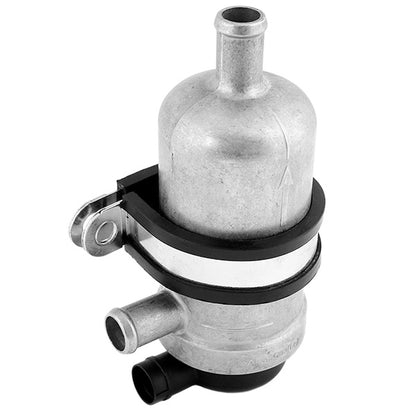

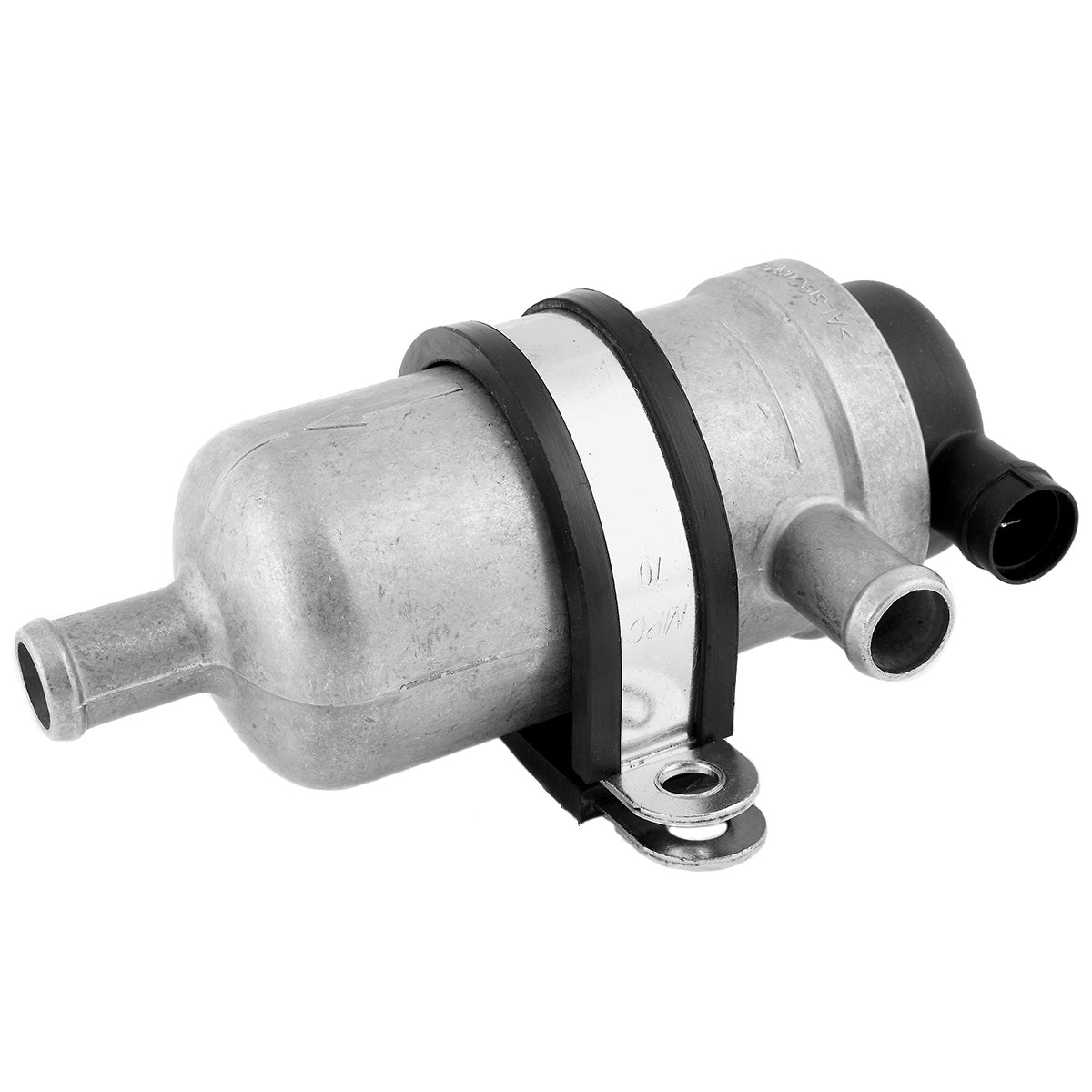

1833240 - Calix Engine Heater PH2000XL 230v (15 - 25 °C)
Calix range of PH heaters are manufactured for longevity, quality and ease of installation. They can be installed passively using the thermosiphon principle, or if an optimum position isn't available then an additional transformer & pump kit can be purchased to circulate coolant through the system. An industry leading 3-year warranty is offered on all Calix products.
The PH is available in two versions; high temperature for frequently used vehicles & machinery and low temperature for standby generators and emergency vehicles.
| Specification | Metric | Imperial & Other |
| Heating Power | 2000 W | 6824 BTU |
| Thermostat Temp Spread | On @ 15°c, Off @ 25°c | On @ 59°F, Off @ 77°F |
| Secondary Failsafe Thermostat | 80°c | 176°F |
| Hose Size | 20 mm | ~3/4" |
| Unit Weight | 0.9 kg | 1.98 lbs |
| Operating Voltage | 230 v AC | |
| Current Draw | 8.7 a | |
| Overheat Protection | Manual Reset Overheat Thermostat | |
| Conformity | CE, Low Voltage Directive 2006/95EC, EMC Directive 2004/108/EC | |
| Warranty | 3 Years from Date of Purchase | |
| Manufacturer | Manufactured in Sweden by Calix | |
| Part Number | 1833240 | |
The full calix range of engine & block heaters are designed as a modular system where the end user can build a complete system from the various components based on their specific requirements, therefore this heater is supplied as a bare bones unit with just the following components.
| Quantity | Description | Replacement Part Number |
| 1x | PH2000L Engine Heater | - |
| 1x | Cable Safety Lock | 1556341 |
| 1x | Rubber Lined Clamp | Please see 'Clamp Pro' |
Extension cables, wall socket cables, timers, battery chargers, water pumps, interior air heaters etc are available to buy separately.
- Please thoroughly read the provided instructions prior to use. Damage caused by incorrect installation, use or maintenance is not covered.
- Calix Engine Heaters are not compatible with any radiator sealant, radweld, cooling system stop leak, leak repair etc. Using the heater in conjunction with these chemicals will invalidate the warranty.
