Calix

Calix Engine Heater PH1500H 1500w 115v (60-80c) 1833151

Calix Engine Heater PH1500H 1500w 115v (60-80c) 1833151

Regular price £243.08 GBP ex VAT
Regular price
Sale price £243.08 GBP ex VAT
£291.70 GBP inc VAT
£291.70 GBP inc VAT
Sale Sold out
P/N: 1833151

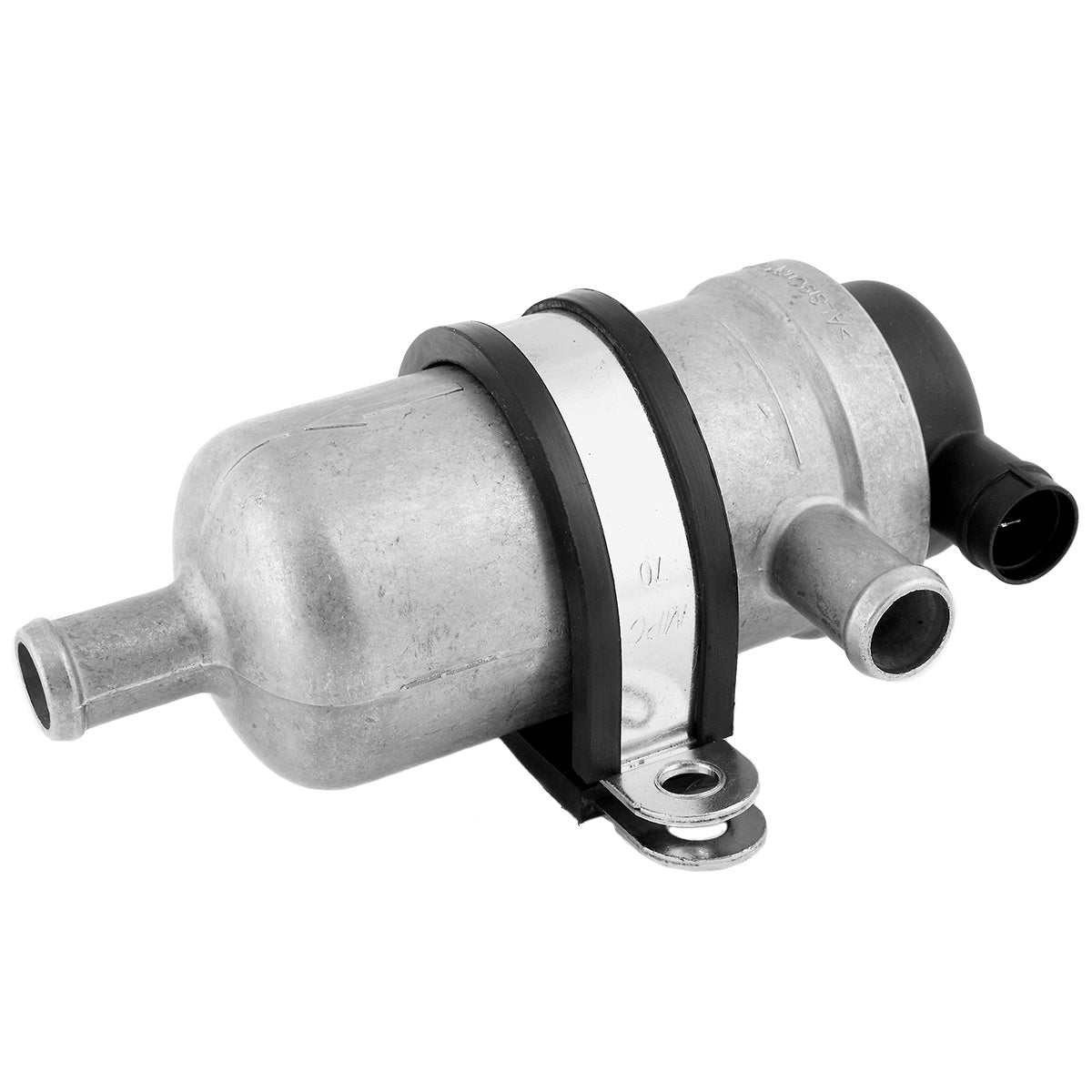

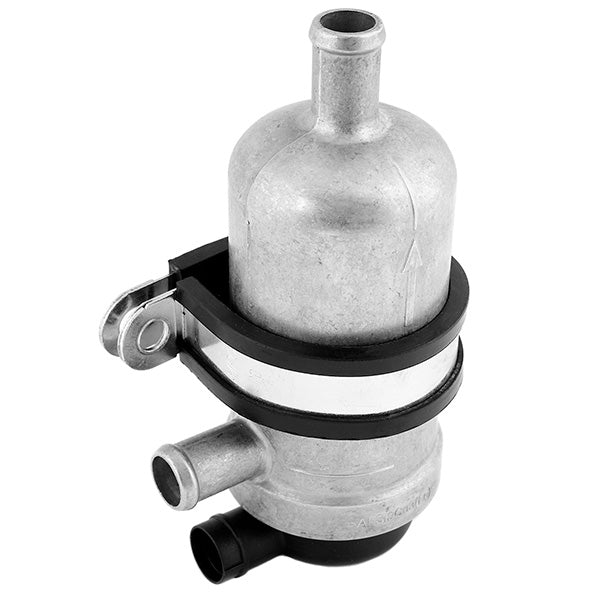

1833151 - Calix Engine Heater PH1500H 115v (60 - 80 °C)

Calix range of PH Engine Heaters are manufactured for longevity, quality and ease of installation. They can be installed passively using the thermosiphon principle, or if an optimum position isn't available then an additional transformer & pump kit can be purchased to circulate coolant through the system. An industry leading 3-year warranty is offered on all Calix products.

he PH is available in two versions; high temperature for frequently used vehicles & machinery and low temperature for standby generators and emergency vehicles.

Specification Metric Imperial & Other
Heating Power 1500 W 5,118 BTU
Thermostat Temp Spread On @ 60°c, Off @ 80°c On @ 140°F, Off @ 176°F
Secondary Failsafe Thermostat 80°c 176°F
Hose Size 20 mm ~3/4"
Unit Weight 0.9 kg 1.98 lbs
Operating Voltage 115 v AC
Current Draw 13 a
Overheat Protection Manual Reset Overheat Thermostat
Conformity CE, Low Voltage Directive 2006/95EC, EMC Directive 2004/108/EC
Warranty 3 Years from Date of Purchase
Manufacturer Manufactured in Sweden by Calix
Part Number 1833151
What's In The Box?

The full calix range of engine & block heaters are designed as a modular system where the end user can build a complete system from the various components based on their specific requirements, therefore this heater is supplied as a bare bones unit with just the following components. Extension cables, wall socket cables, timers, battery chargers, pumps etc are available to buy separately.

Quantity Description Replacement Part Number
1x PH1500H Engine Heater -
1x Cable Safety Lock 1556341
1x Rubber Lined Clamp Please see 'Clamp Pro'
Dimensions
Calix Engine Pre Heater PH1000H 1833151
attention
ATTENTION
  • Please thoroughly read the provided instructions prior to use. Damage caused by incorrect installation, use or maintenance is not covered.
  • Calix Engine Heaters are not compatible with any radiator sealant, radweld, cooling system stop leak, leak repair etc. Using the heater in conjunction with these chemicals will invalidate the warranty.
