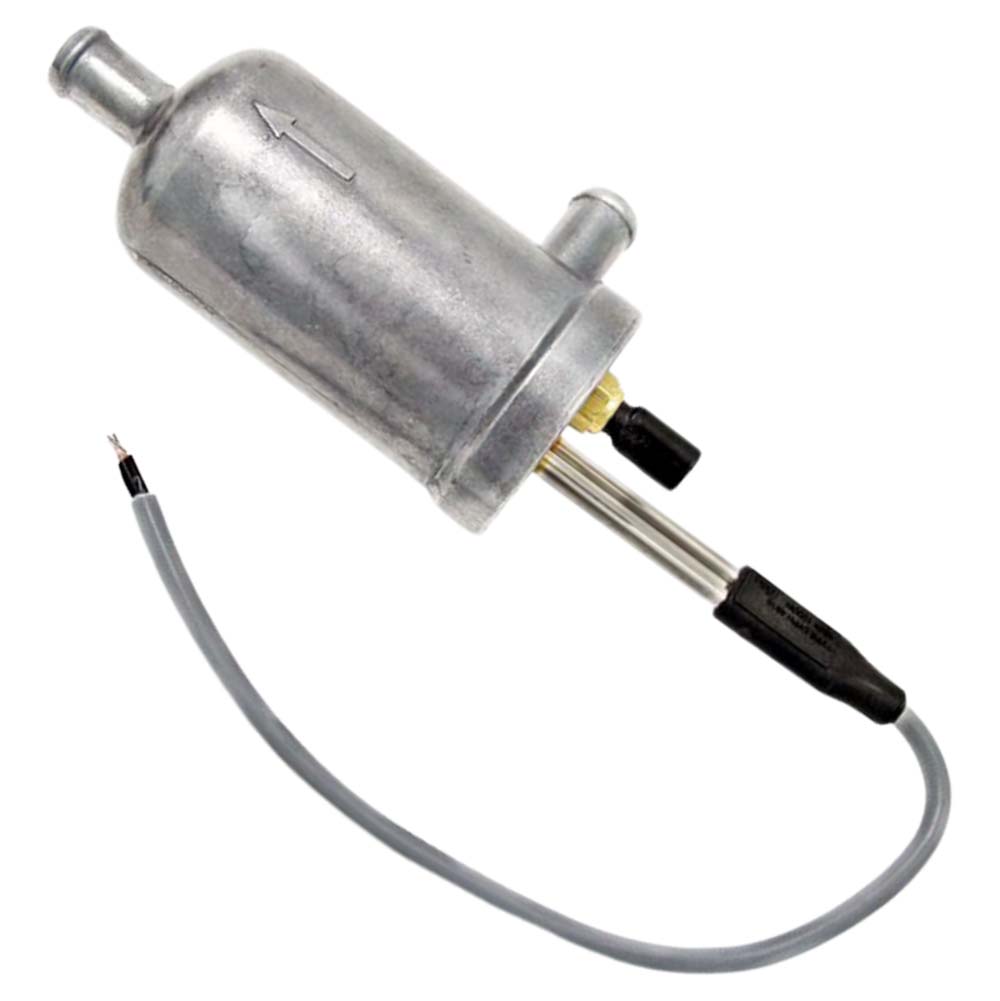

Calix Battery Coolant Heater LVPH4810 1000w 48 VDC 1560106
Calix Battery Coolant Heater LVPH4810 1000w 48 VDC 1560106
£291.72 GBP inc VAT
Couldn't load pickup availability
1560106 - Calix LVPH4810 - 48V 1kW Battery Coolant Heater w NTC Temp Sensor
The LVPH4810 is a low voltage DC heater designed for battery heating in electric vehicles for cold climate applications or conditioning prior to fast charging, the coolant heater includes an integrated NTC thermistor for temperature sensing. Please note that this heater requires an external thermal management unit to control the heater and prevent over heating conditions.
Calix range of PH heaters are manufactured for longevity, quality and ease of installation. They can be installed passively using the thermosiphon principle, or if an optimum position isn't available then an additional transformer & pump kit can be purchased to circulate coolant through the system. An industry leading 3-year warranty is offered on all Calix products.
| Specification | Metric | Imperial & Other |
| Heating Power @ 48 VDC | 1000 W | 3412 BTU |
| Heating Power @ 58 VDC | 1460 W | 4981 BTU |
| Heating Power @ 24 VDC | 250 W | 853 BTU |
| Operating Temp Range | -40 to 90 °C | -40 to 194 °F |
| Storage Temp Range | -40 to 125 °C | -40 to 257 °F |
| Max Coolant Pressure | 3 BAR | 43.5 PSI |
| Hose Size | 20 mm | ~3/4" |
| Unit Weight | 0.9 kg | 1.98 lbs |
| Voltage Nominal | 48 VDC | |
| Current Draw | 21 A | |
| Temp Sensor | NTC, Delphi NME 15425529 | |
| Conformity | IP6K7, NTC: IP69K, ISO 20653:2013, IEC 60529 | |
| Warranty | 3 Years from Date of Purchase | |
| Manufacturer | Calix | |
| Part Number | 1560106 | |
- Please thoroughly read the provided instructions prior to use. Damage caused by incorrect installation, use or maintenance is not covered.
- The canister must be installed in the upright position with the outlet facing up.
- The LVPH4810 does not have anyboard overheat protection.
