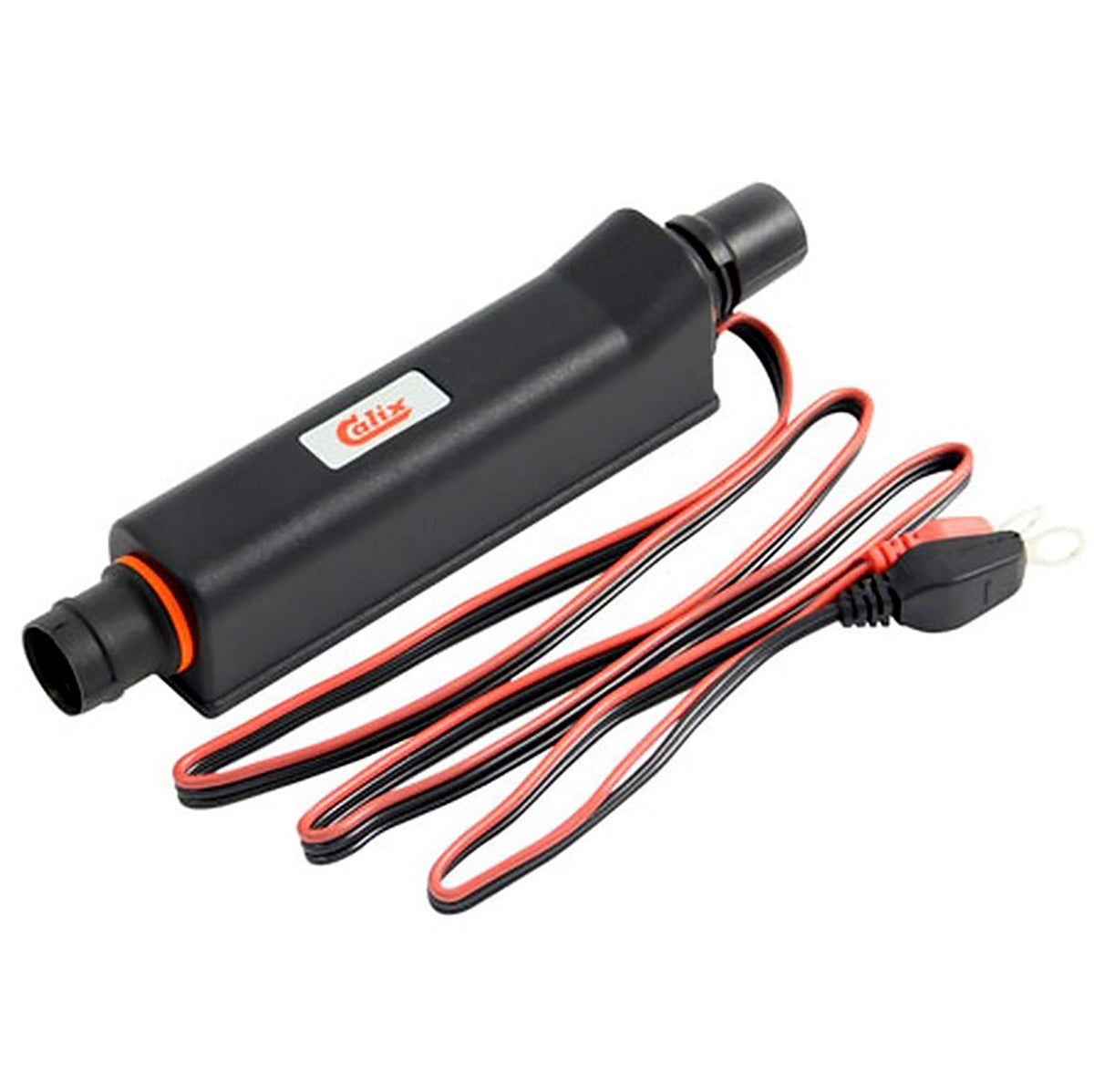

Calix BC60 Battery Charger 115/230v to 12v 2a - 1753925

1753925 - BC60 Battery Charger 115/230v to 12v 2a

The BC60 is a fully automatic, 12 volt charger recommended for 5-75Ah batteries. The charger is very light and easy to install. While best suited for small-to-medium sized vehicles, it also works on larger vehicles. The charger’s primary purpose is to charge the battery, but it is also ideally suited as a trickle charger.

The charger’s primary task is to top up the battery, although it is also excellent as a trickle charger. The BC60 is a 12 volt charger that is optimised for small and medium-sized cars, although it is also suitable for larger vehicles. Internal electronics provide both reverse polarity and overcurrent protection, which means the chargers do not require external fuses. The BC60 is also equipped with a temperature sensor that is integrated in the negative cable (black), which ensures optimised charging according to the outdoor temperature.

The charger is intended for rechargeable lead batteries with greater capacity than 24 Ah and approved for fixed mounting in motor vehicles with 12 V electrical systems and negative ground (minus to chassis). When charging there is no need to remove the battery's cell caps or disconnect the battery cables. The charger is designed to charge at low temperatures. Please refer to the battery manufacturer's instructions on care, subsequent topping up with distilled water, cleaning, etc.

Installation into an existing Calix heating system: If the vehicle has already been equipped with a Calix car heating system, just a supplementary dual voltage extension cable may be needed for connection of the battery charger.

Installation as a standalone charger: When installing only the battery charger, then just a dual voltage Calix "MS Mains Cable" and an "MK Inlet Cable" is required. Please see our 'Cables' section for all available Calix cables.

The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can assembly a complete system from the numerous options available to match their specific requirements.

ATTENTION

• Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
