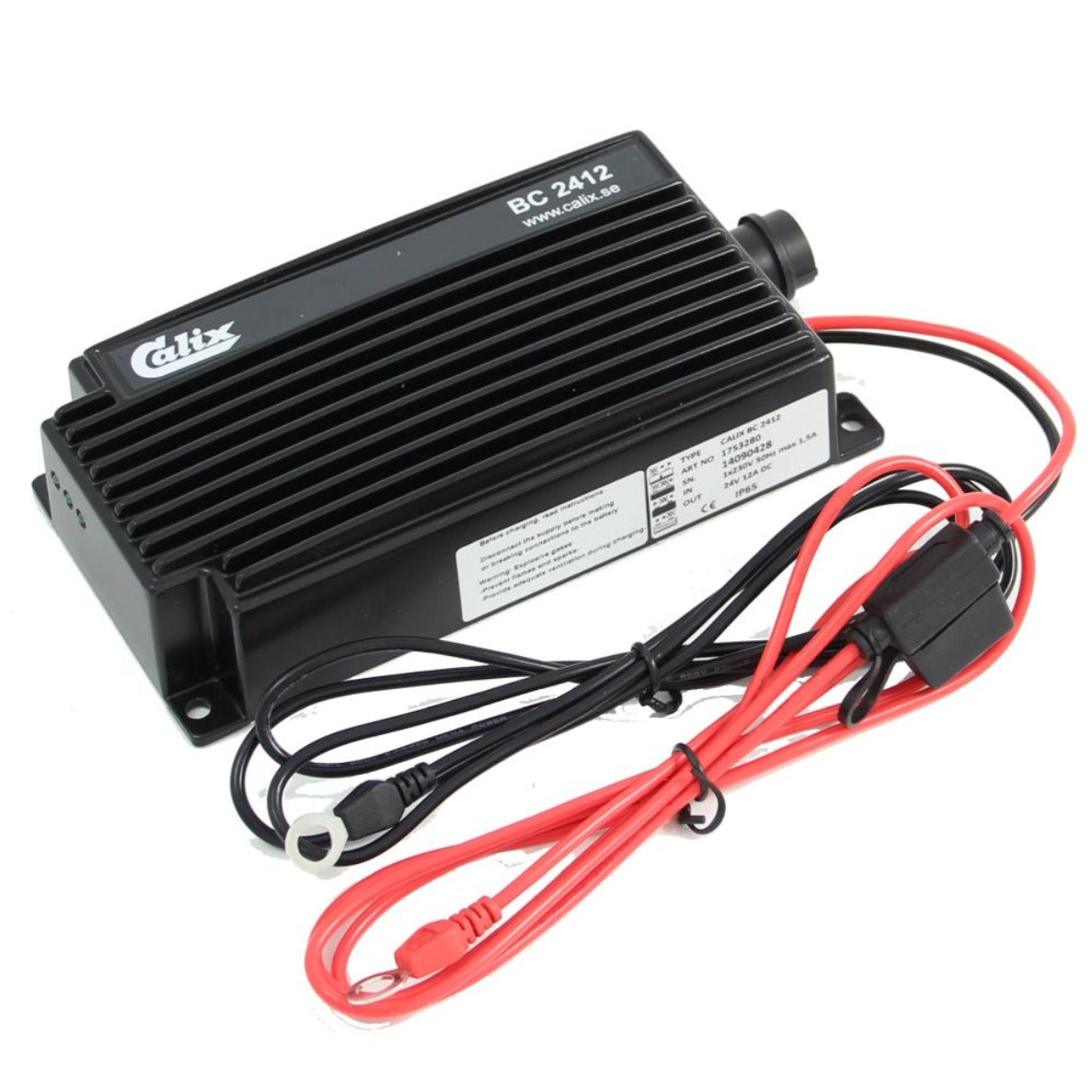

Calix BC2412 Battery Charger 230v to 24v 12a - 1754060

1754060 - BC2412 Battery Charger 230v to 24v 12a

The BC 2412 and BC 2420 are ideally suited for vehicles and applicationsthat consume a lot of power and require constant charging, such as city buses, inter-city buses and distribution vehicles. The chargers are able to handle parallel loads, which means they can supply consumers such as lights and radios with power and use the remainder to charge the battery.

The BC 2412 is moulded in a single piece, which prevents water, dust and chemicals from entering.

Like many other Calix chargers, the BC 2412 is EMC approved and can handle wide temperature differences during charging.

The charger is intended for rechargeable lead batteries with greater capacity than 24 Ah and approved for fixed mounting in motor vehicles with 24 V electrical systems and negative ground (minus to chassis). When charging there is no need to remove the battery's cell caps or disconnect the battery cables. The charger is designed to charge at low temperatures. Please refer to the battery manufacturer's instructions on care, subsequent topping up with distilled water, cleaning, etc.

Installation into an existing Calix heating system: If the vehicle has already been equipped with a Calix car heating system, a supplementary "SK Extension Cable" and a breakout connector may be needed for connection of the battery charger.

Installation as a standalone charger: When installing only the battery charger, then just a dual voltage Calix "MS Mains Cable" and a "MK Inlet Cable" is required. Please see our 'Cables' section for all available Calix cables.

The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can assembly a complete system from the numerous options available to match their specific requirements.

ATTENTION

• Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
