Calix BC2405 Battery Charger 230v to 24v 5a - 1754050
Calix BC2405 Battery Charger 230v to 24v 5a - 1754050
£536.27 GBP inc VAT
Couldn't load pickup availability

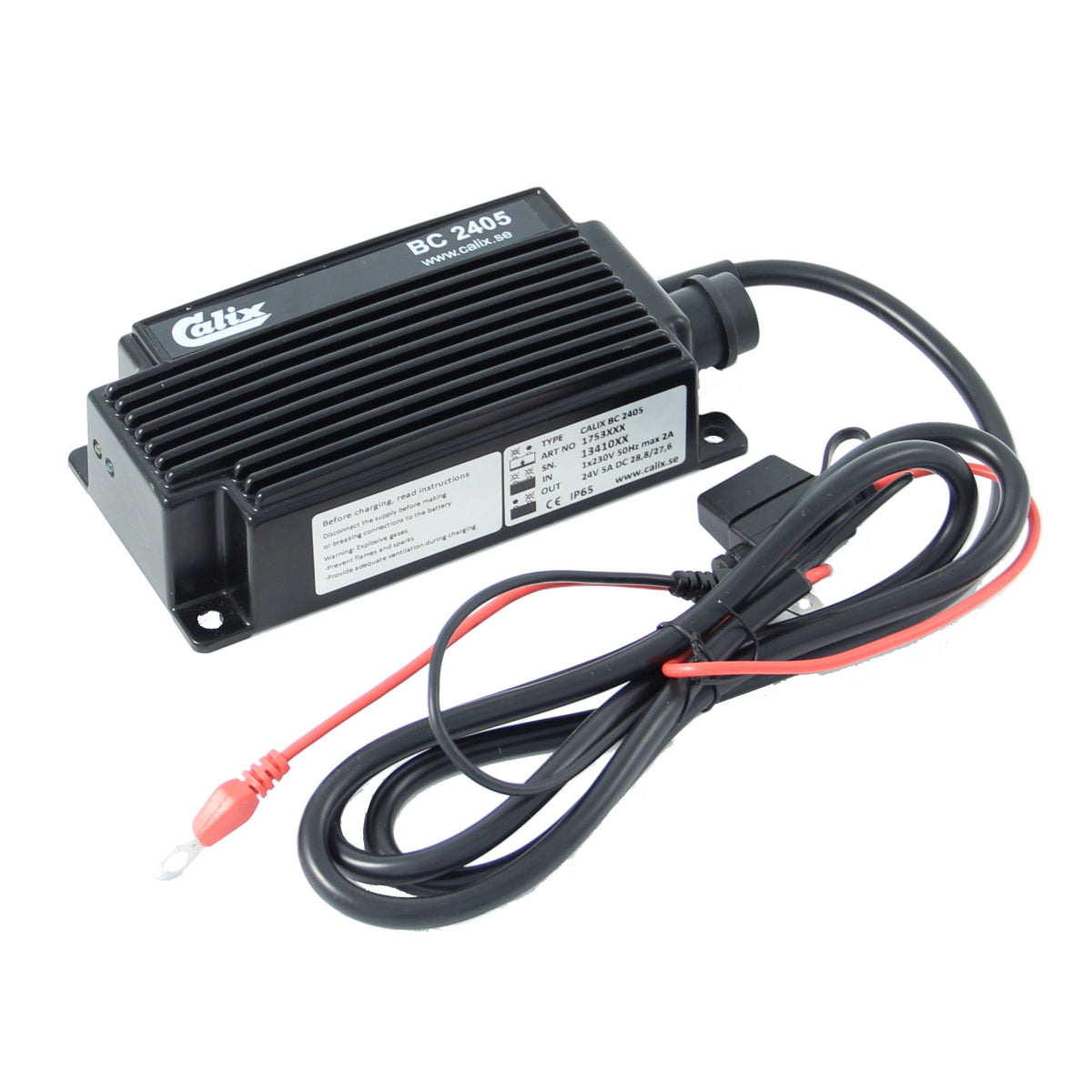

1754050 - BC2405 Battery Charger 230v to 24v 5a
The BC2405 is a modern, fully automatic battery charger with a high IP class suitable for vehicles and applications that remain idle for extended periods such as forestry machines, combine harvesters, trucks or stand-by generators commonly found in hospitals. The BC 2405 is a versatile charger easily installed in the vehicle/generator by the user together with a suitable cable and installation kit (MKMS).
The BC2405 is moulded in a single piece, which prevents water, dust and chemicals from entering.
Like many other Calix chargers, the BC2405 is EMC approved and can handle wide temperature differences during charging.
The charger is intended for rechargeable lead batteries with greater capacity than 24 Ah and approved for fixed mounting in motor vehicles with 12 V electrical systems and negative ground (minus to chassis). When charging there is no need to remove the battery's cell caps or disconnect the battery cables. The charger is designed to charge at low temperatures. Please refer to the battery manufacturer's instructions on care, subsequent topping up with distilled water, cleaning, etc.
| Specification | Metric | Imperial & Other |
| Dimensions (LxWxH) | 155 x 80 x 43mm | 6.1 x 3.15 x 1.7" |
| Input Voltage | 230v AC | |
| System Voltage | 24v DC | |
| Charging Voltage | 28.8v DC | |
| Trickle Charging Voltage | 27.4v DC | |
| Max Charging Current | 5A | |
| Protection & Standards | IP46, LVD 73/23/EEC, EMC 89/336/EEC, CE & EN Standards | |
| Warranty | 3 Years from Date of Purchase | |
| Manufacturer | Manufactured in Sweden by Calix | |
| Part Number | 1754050 | |
Installation into an existing Calix heating system: If the vehicle has already been equipped with a Calix car heating system, a supplementary "SK Extension Cable" and a breakout connector may be needed for connection of the battery charger.
Installation as a standalone charger: When installing only the battery charger, then just a dual voltage Calix "MS Mains Cable" and a "MK Inlet Cable" is required. Please see our 'Cables' section for all available Calix cables.
The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can assembly a complete system from the numerous options available to match their specific requirements.
| Quantity | Description | Replacement Part Number |
| 1x | BC2405 Battery Charger | 1754050 |
- Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
