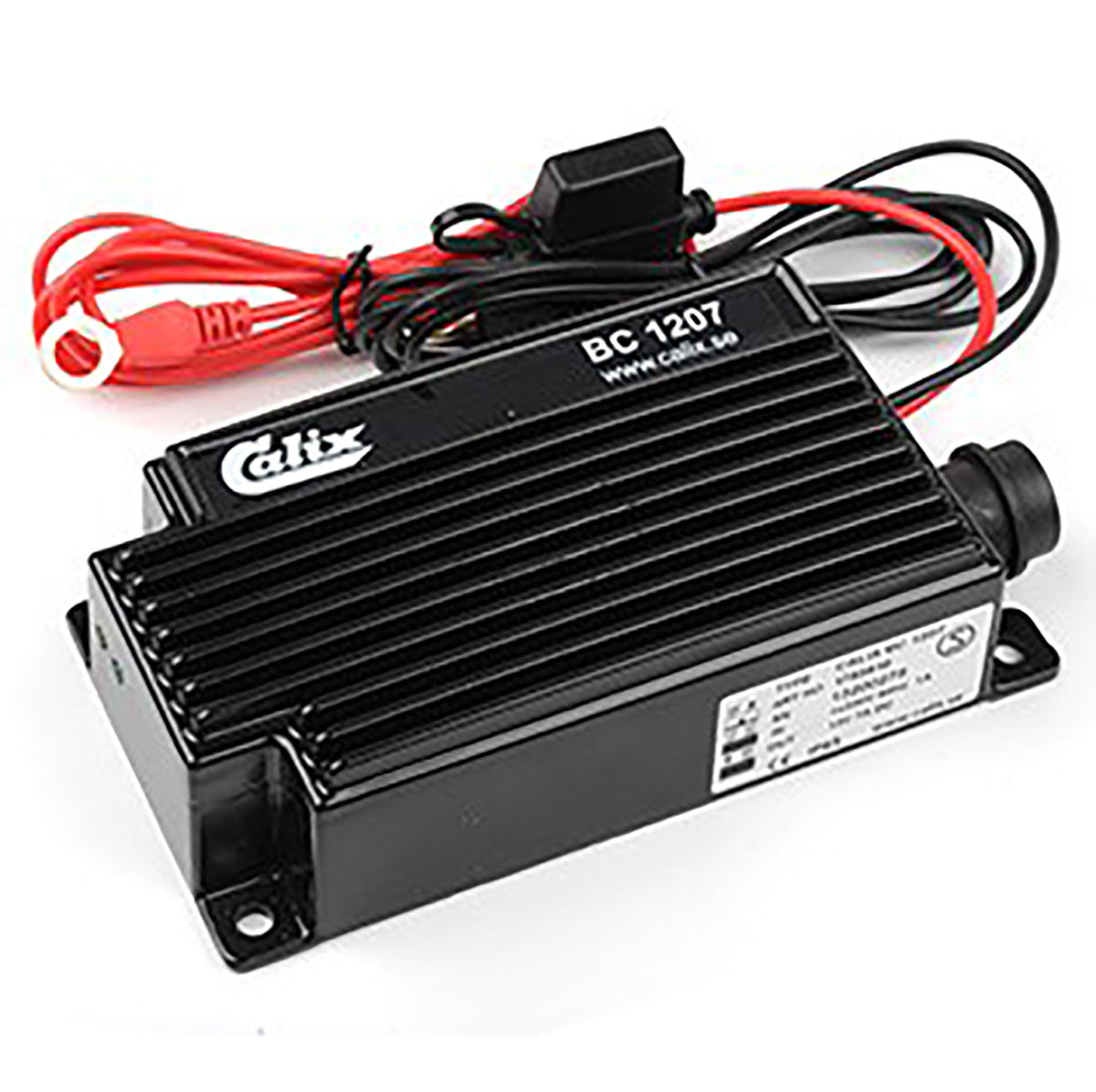

Calix BC1207 Battery Charger 230v to 12v 7a - 1753910

1753910 - BC1207 Battery Charger 230v to 12v 7a

The BC1207 is a professional charger for users who need an especially robust, high performance charger. The charger, which is fully automatic, is suitable for large cars and is also commonly installed in working vehicles, police vehicles, ambulances and tractors.

The BC 1207 is moulded in a single piece, which prevents water, dust and chemicals from entering.

Like many other Calix chargers, the BC 1207 is EMC approved and can handle wide temperature differences during charging.

The BC1207-S has the same features as BC1207 but is also supplied with a 2-metre single conductor that provides a 12V signal; it is intended for connection to an immobilizer via a relay. The immobilizer function prevents vehicle start while the Calix power supply cable is connected to the outlet. The BC1207-S charger with immobilizer are specially adapted for use on rescue and emergency vehicles, where immobilizers are in common use.

The charger’s primary task is to top up the battery, although it is also excellent as a trickle charger. The BC60 is a 12 volt charger that is optimised for small and medium-sized cars, although it is also suitable for larger vehicles. Internal electronics provide both reverse polarity and overcurrent protection, which means the chargers do not require external fuses. The BC1205 is also equipped with a temperature sensor that is integrated in the negative cable (black), which ensures optimised charging according to the outdoor temperature.

The charger is intended for rechargeable lead batteries with greater capacity than 24 Ah and approved for fixed mounting in motor vehicles with 12 V electrical systems and negative ground (minus to chassis). When charging there is no need to remove the battery's cell caps or disconnect the battery cables. The charger is designed to charge at low temperatures. Please refer to the battery manufacturer's instructions on care, subsequent topping up with distilled water, cleaning, etc.

Installation into an existing Calix heating system: If the vehicle has already been equipped with a Calix car heating system, a supplementary "SK Extension Cable" and a breakout connector may be needed for connection of the battery charger.

Installation as a standalone charger: When installing only the battery charger, then just a dual voltage Calix "MS Mains Cable" and a "MK Inlet Cable" is required. Please see our 'Cables' section for all available Calix cables.

The full calix range of engine/block heaters & cable sets are designed as a modular system where the end user can assembly a complete system from the numerous options available to match their specific requirements.

ATTENTION

• Please thoroughly read the instructions prior to installation and use. Damage caused by incorrect installation, use or maintenance is not covered.
